• Front/rear license plate bracket
• Argent painted front/rear step bumper
• Black box-rail/tailgate top-edge moldings
• Valance air dam
• Argent grille
• Sealed beam halogen headlamps
• Pickup box/cargo light
• Black door handles
• Black fold-away manual mirrors
• Solar tinted glass
• Flip-out rear quarter windows
• Interval wipers
• Dual rear access doors
• Removable locking tailgate w/black handle

• HD vinyl front bench seat w/outboard headrests
• Vinyl fold-up rear bench seat
• Black vinyl full-floor covering
• Color-keyed scuff plates
• Black vinyl steering wheel
• Instrumentation-inc: tachometer, trip odometer, voltmeter, oil pressure/ coolant temp/fuel gauges, indicator lights
• Belt Minder seatbelt-not-buckled chime & flashing warning light
• Inside hood release
• (4) air registers w/positive shut-off
• Electronic AM/FM stereo radio-inc: digital clock, (2) speakers
• Color-keyed instrument panel w/dual cupholders/glove box/ashtray/cigar lighter
• Rear door map pockets w/integrated "closed containers only" cupholders
• Auxiliary pwr point
• Color-keyed molded door trim panel-inc: hard armrest, grab handle, reflector
• 11.5" day/night mirror
• Color-keyed molded cloth headliner
• Driver & passenger grab handles
• Front passenger-side roof ride handle
• Dual color-keyed cloth sunvisors-inc: driver-side map strap, passenger-side mirror insert
• Dual color-keyed coat hooks
• Front door operated dome lamp w/time delay off
• Grey fabric back panel cover

• 4-wheel anti-lock braking system
• Driver & front passenger airbags w/passenger-side deactivation switch
• Color-keyed safety belts w/front seat adjustable D-rings
• Front/rear child seat tethers (on all seats)
• Dual-note horn

5.4L (330) SOHC EFI V8 ENGINE

• (STD)

• GVWR: 8,800 lbs Payload Package (#1)
• Trailer Tow Package
• 2 Speakers
• AM/FM radio
• Power steering
• Vinyl Rear Fold-Up Bench Seat
• 4-Wheel ABS Brakes
• 4-Wheel Disc Brakes
• ABS brakes
• Argent Rear Step Bumper
• Driver & Passenger Airbag
• Dual front impact airbags
• Front anti-roll bar
• Passenger cancellable airbag
• Rear step bumper
• Passenger vanity mirror
• Tachometer
• Voltmeter
• HD Vinyl Full Bench Seat w/Recline
• Split folding rear seat
• Front Tow Hooks
• Argent Painted Steel Wheels
• Variably intermittent wipers
• 3.73 Axle Ratio
• INCLUDES PRE-PAID MAINTENANCE

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 130
• Cooling System
• Total Cooling System Capacity (qts): 26.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3389
• Curb Weight - Rear (lbs): 2276
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 13,500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 700
• Suspension
• Suspension Type - Front: Single Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 6830
• Axle Type - Front: Dana Monobeam
• Axle Type - Rear: Ford Full-Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 6830
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.83 x - TBD -
• Tires
• Front Tire Order Code: T35
• Rear Tire Order Code: T35
• Front Tire Size: LT235/85R16E
• Rear Tire Size: LT235/85R16E
• Spare Tire Size: LT235/85R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 655
• Revolutions/Mile @ 45 mph - Rear: 655
• Revolutions/Mile @ 45 mph - Spare: 655
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.0
• Turning Diameter - Wall to Wall (ft): 54.6
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 29
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 141.8
• Length, Overall w/o rear bumper (in): 227.0
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.4
• Overhang, Front (in): 37.4
• Overhang, Rear w/o bumper (in): 47.8
• Front Bumper to Back of Cab (in): 139.2
• Cab to Axle (in): 40.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.4
• Cargo Box Width @ Top, Rear (in): 64.6
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 65.0
• Cargo Volume (ft³): 64.7
• Ext'd Cab Cargo Volume (ft³): 43.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.4
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 32.4
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.3
• Summary

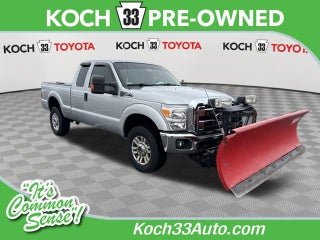

• Vehicle Name: Ford Super Duty F-250
• Body Style: Supercab 6-3/4'
• Body Code: 142" WB
